Custom Fiberglass Auto Parts: Drawing, Mold And Sample Checklist

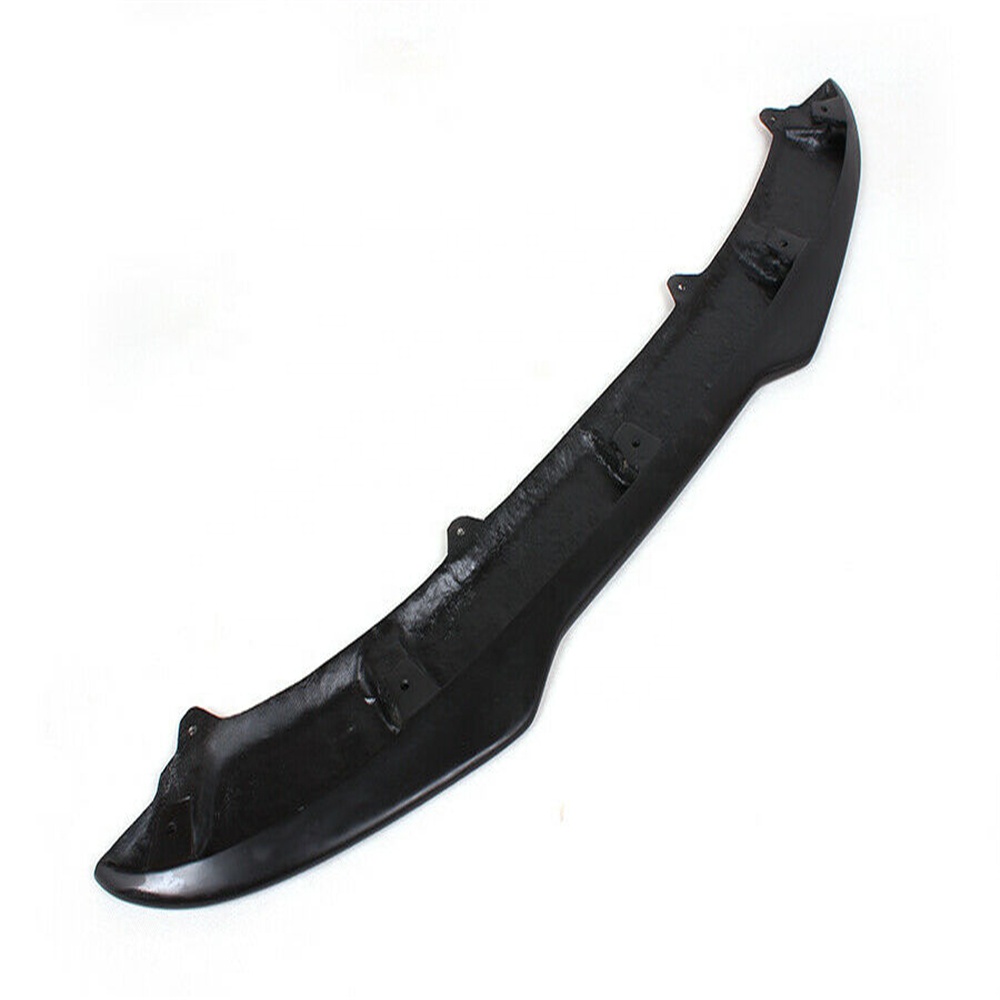

Custom automotive composites offer unparalleled design freedom. Fiberglass (FRP) delivers exceptional strength-to-weight ratios for performance and aesthetic modifications. However, the initial tooling and prototyping phases often carry heavy financial and timeline risks. Dimensional inaccuracies, unexpected resin failures, and surface defects can easily derail a project. You must mitigate these risks through a rigorous, step-by-step validation process. Moving blindly from a basic CAD drawing directly to a final pre-production sample usually results in costly delays. A minor calculation error early on amplifies across every subsequent production phase. This comprehensive guide serves as your technical and commercial safeguard. We will walk you through the essential checkpoints required to manufacture high-quality, production-ready components. Whether you manage B2B procurement, own an aftermarket brand, or work as a performance engineer, you need reliable processes. You will learn how to ensure structural integrity, perfect surface finishes, and strict quality control from day one.

Key Takeaways

• Tooling Dictates Quality: A production mold must be structurally superior (typically twice the thickness of the final part) and polished to a Class "A" finish to ensure scalable success.

• Material Compatibility is Strict: Specifying the right resin (Polyester vs. Vinyl Ester vs. Epoxy) and reinforcement prevents catastrophic delamination and heat distortion in auto parts.

• Samples Require Critical Inspection: The first-off sample is for stress-testing dimensional tolerances, gel coat integrity, and parting line flash—not just aesthetics.

• Supplier Transparency is Non-Negotiable: Moving from prototype to OEM manufacturing requires clear agreements on tooling ownership, volume thresholds, and quality control standard operating procedures (SOPs).

1. Technical Drawings and Plug Preparation Requirements

Bridging the gap between a digital 3D model and a physical plug demands exact precision. The plug serves as the master male model. Digital perfection never automatically translates into accurate physical fitment. Automotive composites undergo chemical changes. Resins inherently shrink during the curing phase. Polyester resins, for example, can shrink by up to two percent. You must account for this specific shrinkage rate within your initial CAD models.

Draft angles represent another critical engineering calculation. You need proper draft angles clearly defined in the drawing phase. Workers must easily demold the final part. Without sufficient draft, the molded part locks inside the tooling cavity. This mechanical lock often damages both the component and the expensive mold. We recommend incorporating a minimum draft angle of two to three degrees on all vertical surfaces.

Plug surface finishing requires immense expertise and patience. The physical plug must feature a meticulous, polished finish. We consider a Class "A" finish absolutely mandatory. Any minor scratch, pinhole, or low spot on the plug will permanently transfer directly into the production mold. We highly suggest specifying long sanding blocks over traditional orbital sanders. Long blocks bridge the gaps across curved surfaces. They maintain perfectly flat automotive body lines and eliminate unwanted wavy reflections. Applying a contrasting guide coat during the sanding process helps technicians identify microscopic low spots before finalizing the plug.

2. Mold Construction Strategy: Open, Closed, and Multi-Piece

Manufacturers must deliberately choose between female and male molds. Male molds are generally cheaper and faster to prototype. However, female molds offer a far stronger business case in automotive manufacturing. The tooling gel coat is sprayed directly into the female cavity. This process replicates the mold's highly polished surface perfectly onto the part's exterior. This strategy drastically reduces post-processing and painting costs when producing Custom Fiberglass Auto Parts at scale.

Structural integrity remains non-negotiable during mold construction. Industry standards dictate a very specific baseline. A production mold should generally measure twice the thickness of the intended final part. The curing process creates an exothermic reaction. This reaction generates significant heat. The added tooling bulk prevents the mold from warping during repetitive, high-heat thermal curing cycles. A thin mold will distort after just a few pulls, rendering it completely useless.

Complex automotive shapes demand advanced tooling strategies. Aggressive aerodynamic components often feature deep returns or sharp undercuts. Front bumpers and widebody fenders require two-piece or multi-piece molds. You must ensure the inclusion of well-engineered parting line dams. Precise alignment pins and robust clamping flanges are also essential. These specific elements keep multi-piece molds tightly secured together. They prevent messy seam lines and minimize the need for heavy grinding during assembly.

3. Material Matrix: Aligning Resins and Reinforcements to Part Function

Selecting the correct material matrix directly impacts part durability. You must actively balance cost against performance based on the specific vehicle application. Choosing the wrong chemical base leads to rapid component failure.

• Polyester: This remains highly cost-effective. It serves as the standard choice for general cosmetic body panels. However, it is highly susceptible to air-inhibition during curing. Workers must apply proper surfacing wax or a PVA sealing spray to ensure a complete, tack-free cure.

• Vinyl Ester: We prefer this resilient choice for high-heat automotive environments. Hoods and engine bay surrounds benefit greatly from its superior thermal stability. It also offers excellent resistance against corrosive automotive fluids.

• Epoxy: This option delivers the highest tensile strength and the best long-term dimensional stability. It carries a premium price point. It also requires strict ambient temperature controls. Your facility must maintain temperatures above 70°F during the entire manufacturing process.

Reinforcement rules demand deep technical expertise. Incompatible combinations will ruin your entire production run. Standard chopped strand mat contains chemical styrene binders. These specific binders do not dissolve in epoxy resin systems. If you mix them, the laminate will fail. We strongly advocate using directional woven fabrics or specialized epoxy-compatible stitched mats when building critical structural components.

4. The Pre-Production Sample: A Rigorous Quality Checklist

Inspecting the first-off sample goes far beyond basic aesthetics. It serves as a comprehensive stress test for your entire manufacturing pipeline. You must approach this phase systematically.

Start with a thorough visual and surface inspection. You must carefully check your FRP Custom Auto Parts sample for distinct manufacturing flaws. Look closely for tiny pinholes across the surface. These indicate trapped moisture or poor spray gun atomization. Check the complex corners for "bridging." Bridging occurs when air gets trapped in sharp crevices, leaving a fragile void underneath the gel coat. Watch out for "alligatoring," which manifests as a visible wrinkling of the surface finish. This usually stems from applying the gel coat too thinly.

Next, evaluate dimensional fitment and overall warpage. We highly recommend test-fitting the sample directly to a physical vehicle chassis.

1. Examine all exterior mounting edges for unwanted curling.

2. Measure for asymmetrical shrinkage across wide, flat panels using precise calipers.

3. Verify that all pre-drilled mounting hole alignments match the chassis perfectly.

Edge curling or asymmetrical shrinkage usually indicates premature demolding. It can also stem from an unbalanced resin-to-glass ratio. Workers might have pulled the part before the exothermic reaction finished.

Finally, assess the component's weight and consistency. A high-quality sample should never feature overly thick, resin-rich areas. Heavy resin spots cause severe brittleness under impact. Conversely, dry spots lacking enough resin will inevitably cause catastrophic structural failure. You must clearly define acceptable weight variances for your Fiberglass Auto Parts before moving into full-scale mass production.

5. Transitioning to OEM Manufacturing: Supplier Evaluation

Moving from prototyping to full-scale production introduces complex commercial realities. You must evaluate your manufacturing partner carefully to ensure sustainable success.

First, address tooling amortization and ownership. Molds naturally deteriorate over time. You need to clearly define who actually owns the expensive molds after the initial production run concludes. Ensure your contract guarantees a specific lifecycle. Establish the exact number of pulls the mold can endure before it requires professional resurfacing. A high-quality production mold might last for hundreds of pulls, while a rushed prototype mold could degrade after thirty.

Scalability and Standard Operating Procedures (SOPs) separate average job shops from elite suppliers. Evaluate the manufacturer's facility closely. Do they rely entirely on manual open-mold hand layups? Hand layups introduce human error and inconsistent weights. As your sales volume increases, they should possess the capability to scale up. Moving the production of OEM Fiberglass Auto Parts to a Vacuum Infusion Process (VIP) or Light Resin Transfer Molding (LRTM) ensures vastly better consistency. VIP utilizes atmospheric pressure to pull resin through the dry laminate, creating an optimal strength-to-weight ratio.

Compliance and proper documentation secure your brand reputation. Ensure the supplier provides comprehensive Material Safety Data Sheets (MSDS). They must also deliver certificates of conformance for all incoming raw materials. Documented quality assurance gates at every single production stage remain absolutely vital. You should request to see their internal checklists for gel coat application, resin batch tracking, and final trimming.

Conclusion

Successful custom fiberglass manufacturing relies entirely on front-loaded risk management. The time you invest in perfecting your technical drawings, male plug, and production mold pays exponential dividends in manufacturing efficiency.

• Perfecting your digital CAD drawings prevents costly physical fitment failures.

• Investing in thick, polished female molds drastically reduces long-term finishing expenses.

• Matching your specific resin chemistry to the part's function guarantees structural longevity.

• Testing the first pre-production sample protects your entire mass production run.

• Partnering with transparent, capable suppliers secures your commercial interests.

Bring your CAD files, existing physical plugs, or specific OEM requirements to our engineering team today. We provide comprehensive feasibility reviews, accurate tooling quotes, and realistic timeline estimates. Let us help you bring your automotive project to life efficiently and correctly.

FAQ

Q: How does fiberglass compare to carbon fiber for custom auto parts?

A: Carbon fiber offers superior stiffness and lighter weight. It proves ideal for high-stress track applications like Time Attack racing. However, it carries significantly higher material and labor costs. Fiberglass remains the industry standard for cosmetic and general structural body modifications. It works perfectly when extreme weight savings are not the primary goal.

Q: How many parts can be pulled from a standard fiberglass mold?

A: You can typically expect between 50 and 500 parts from a well-made mold. Mold longevity depends heavily on the structural thickness. It also relies on the specific type of tooling gel coat used. Implementing strict maintenance protocols, such as thorough cleaning and re-waxing between every single pull, drastically extends the tool's usable lifespan.

Q: Why is my fiberglass sample sticky or tacky on the inside?

A: Standard laminating polyester resin requires a specific chemical barrier to cure fully. Exposing it directly to air inhibits the final cure. Workers usually apply surfacing wax or a PVA spray to seal the surface. If your sample remains tacky, the supplier likely forgot to finish the interior layer with a finishing resin or a protective wax additive.
