Fiberglass Front Bumper Design Checklist

Views: 0     Author: Site Editor     Publish Time: 2026-07-29      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Designing or commissioning a custom front fascia offers unparalleled aesthetic flexibility. It brings incredible cost-effectiveness for car builders and aftermarket brands. However, creating a flawless Fiberglass Front Bumper carries significant risks regarding dimensional accuracy and structural integrity.

Unlike flexible polyurethane or high-budget carbon fiber, fiberglass is exceptionally rigid. This lack of flex dictates a zero-tolerance approach to mockups, mounting design, and surface preparation. Even a slight misalignment can cause catastrophic panel gaps or stress fractures upon final installation.

We built this strict, step-by-step evaluation framework to guarantee proper fitment and structural safety. You will discover exactly how to achieve a flawless finish on your next project. Follow these guidelines closely to prevent costly post-fabrication revisions and ruined composites.

Key Takeaways

  • Material Realities: FRP offers superior repairability and customization potential but requires meticulous surface preparation compared to polyurethane.

  • Symmetry & Prototyping: Validating compound curves via 1:1 physical mockups or 3D scanning is mandatory before any resin is poured.

  • Hardware Integration: Reusing OEM mounting brackets and anti-rotation fasteners prevents chassis damage and ensures reliable fitment.

  • Drill & Install Protocols: Mandating "dry fit mockups" and reverse-rotation drilling techniques prevents catastrophic spider-cracking on raw fiberglass auto parts.

  • Surface Prep: 99% of FRP parts require aggressive sanding and body filler leveling before primer; paint-readiness is never out-of-the-box.

Material Validation: Benchmarking an FRP Front Bumper

Before committing to any custom bodywork, you must evaluate fiberglass against alternative materials. You need to ensure it meets your vehicle's specific operational requirements. Material selection dictates your tooling costs, installation methods, and long-term repair strategies.

FRP vs. Polyurethane

Fiberglass reinforced plastic (FRP) costs significantly less to tool than polyurethane. It remains infinitely repairable if shattered during a collision. Mechanics can grind out the damage and lay fresh matting. However, it lacks the rubber-like impact deflection of polyurethane. Polyurethane can bounce back from minor scrapes. Yet, polyurethane requires incredibly expensive injection molds. It also demands specialized paint flex agents to prevent the clear coat from cracking when the bumper flexes.

FRP vs. Carbon Fiber

Fiberglass provides an excellent structural base for high-end customization at a fraction of the cost of carbon fiber. You can easily build complex geometries without worrying about weave distortion. It does sacrifice extreme weight reduction. You must also commit to full paint coverage, as raw fiberglass lacks the premium visual appeal of bare carbon weave.

Verdict Criteria

You should select a FRP Front Bumper for highly customized, one-off designs. It excels in heavy aftermarket modifications. It is ideal for vehicles where localized patch repairability takes priority over pure impact resilience.

Material Comparison Chart

Material

Tooling Cost

Impact Resilience

Repairability

Ideal Use Case

Fiberglass (FRP)

Low

Low (Rigid, shatters)

Extremely High

Custom one-offs, complex body kits, track cars.

Polyurethane

Very High

High (Flexes and absorbs)

Low (Hard to patch)

Mass-produced OEM replacements, daily drivers.

Carbon Fiber

Medium-High

Medium (Stiff, splinters)

Medium

High-budget racing, cosmetic bare-weave showcases.

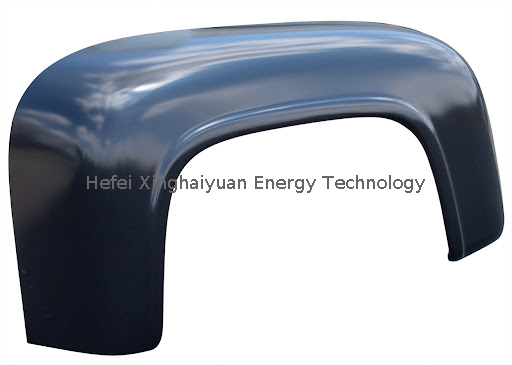

Fiberglass Prototyping and Automotive Customization Process

Prototyping & Symmetry: The Geometric Accuracy Checklist

Compound curves on front fascias present massive design hurdles. Intake ducts, cooler vents, and aerodynamic splitters are notoriously difficult to mirror manually. Human error during the sculpting phase often leads to lopsided aesthetics once the part is pulled from the mold.

Low-Cost Prototyping (The MVP Approach)

You can execute cheap, rapid iterations before committing to expensive composite materials. A physical Minimum Viable Product (MVP) lets you verify proportions in real space. Follow this proven physical workflow for grassroots prototyping:

  1. Substructure Framing: Use cardboard templates to block out the core dimensions against the vehicle frame.

  2. Bulk Shaping: Apply structural foam blocks over the templates and carve away the excess to establish a rough profile.

  3. Surface Sculpting: Trowel automotive body filler or standard drywall mud over the foam. Drywall mud sands easily, making it perfect for rapid 1:1 physical plugs.

  4. Sealing: Spray a thick primer over the dried mud to protect it from the moisture of the molding process.

High-Fidelity Symmetrical Modeling

For commercial-grade Fiberglass Body Kit production, you must mandate a 3D digital workflow. Manual symmetry is nearly impossible to perfect. Instead, sculpt and finalize only the left side of the vehicle physically. Scan this finalized left side using an automotive 3D scanner. You can digitally mirror it in CAD software. Finally, CNC-machine or 3D-print the right side plug. This process completely eliminates human error.

Clearance Verification

Before finalized tooling begins, ensure your prototype accounts for dynamic driving conditions. Verify suspension travel under heavy braking. Check maximum steering lock angles to prevent tire rub. Confirm adequate airflow reaches radiators and intercoolers through your newly designed intake tracts.

Common Mistake: Builders frequently measure wheel clearance while the car sits statically on jack stands. Always verify clearances with the suspension fully loaded and compressed.

Structural Integration: Mounting & Chassis Hardware

A beautiful bumper fails entirely if it rips off on the highway. Structural integration requires intense planning before the mold is ever cast.

The "No New Holes" Rule

Your design must utilize existing OEM chassis mounting points. Drilling new holes into the vehicle frame compromises structural integrity. It also instantly voids factory rust warranties. Professional designs adapt the fiberglass flange to meet the car, not the other way around.

Hardware Harvesting

Plan to reuse factory wiring harness guides for fog lights and sensors. Harvest OEM anti-rotation fasteners from the original bumper. These specific fasteners feature square shanks or captive clips that lock into place. They allow single-handed tightening during installation. Reusing them streamlines final fitment and drastically reduces vibration rattling.

Metal Sub-Structure Protection

Many heavy-duty applications require custom metal brackets. If your bumper integrates metal sub-frames, you must protect them. Mandate the application of heavy-duty protective undercoats to all hidden crevices. Unprotected metal inside a fiberglass shell invites moisture pooling. This rapidly causes galvanic corrosion, weakening the entire mounting structure.

Mold Release & Fabrication Tolerances

Fabrication requires strict adherence to chemical boundaries. If resin permanently bonds to your master plug, you lose hundreds of hours of work instantly.

The 3-Stage Release Protocol

Ensure your fabrication shop strictly follows a triple-layer barrier method. This prevents disastrous adhesion.

  • Stage 1: High-Build Primer. Apply a high-build polyester primer to seal the porous plug material. Foam and drywall mud will absorb resin if left unsealed.

  • Stage 2: Molding Wax. Buff multiple coats of specialized carnauba molding wax onto the sealed plug. This creates the foundational slip layer.

  • Stage 3: Aerosol Gelcoat/PVA. Spray a final barrier of aerosol gelcoat or Polyvinyl Alcohol (PVA). This ensures a smooth, low-friction release when prying the cured mold off the plug.

Curing Considerations

Verify that the layup process accounts for thermal expansion. Resin curing is an exothermic reaction. It generates intense heat. If laid too thick too fast, the fiberglass mold will warp and distort. A warped mold produces twisted bumpers permanently. Allow layers to cool adequately between applications to maintain strict fabrication tolerances.

Installation QA: The Dry-Fit and Drilling Protocol

Installation separates amateur builds from professional engineering. Raw Fiberglass Auto Parts demand specialized handling during the initial mounting phase.

Mandatory Dry-Fit Mockup

Never paint a fiberglass part before test-fitting. You must clamp the raw bumper to the chassis first. Verify panel gaps against the adjacent fenders and hood. Fiberglass molds shrink slightly during curing. You will likely find tight spots. Mark these high spots with a visible marker for preliminary sanding. Modifying a painted bumper ruins the finish.

Stress-Free Drilling Technique

The most common point of failure is cracking the brittle gelcoat during installation. When drilling mounting holes, always place masking tape tightly over the intended target. The tape stabilizes the surface tension and prevents the surrounding gelcoat from chipping outward.

Reverse-Rotation Execution

Instruct all installers to run the drill bit in reverse initially. Press the spinning bit firmly against the taped mark while running backward. Let friction burn through the top gelcoat layer. Once you clear the hard exterior shell, switch the drill to forward rotation to cut through the underlying fiberglass mat. This technique prevents the drill flute from violently biting and tearing the brittle fiberglass matrix.

Drilling Protocol Summary Table

Step

Action

Purpose

1. Masking

Apply heavy masking tape over hole location.

Prevents gelcoat chipping and bit wandering.

2. Reverse Drill

Run drill in reverse to burn through gelcoat.

Prevents flutes from grabbing and spider-cracking the part.

3. Forward Drill

Switch to forward to pierce fiberglass mat.

Quickly clears the structural fibers without binding.

4. Chamfering

Lightly countersink the hole edge.

Relieves stress points when tightening hardware.

Surface Prep: Advancing to a Show-Quality Finish

You cannot simply scuff a raw fiberglass part and spray color over it. Achieving a mirror finish requires understanding the inherent imperfections of composite manufacturing.

Managing Expectations

Acknowledge immediately that raw fiberglass parts require heavy localized finishing. Once removed from the mold, you will uncover pinholes, micro-cracks, and mold-release residues. This is completely normal for composite fabrication. Paint-readiness is never an out-of-the-box reality.

Leveling and Filling

Mandate aggressive block sanding using a rigid sanding block. A soft hand pad will simply ride over the waves in the fiberglass. Block sanding identifies the microscopic high and low spots. Use high-quality automotive body filler to glaze these imperfections. Once leveled, apply a heavy build primer to fill remaining sand scratches.

Best Practice: Apply a contrasting dry guide coat powder over your primer. When you block sand the primer, the dark powder remains in the low spots, highlighting exactly where you need more filling.

Paint Adhesion

FRP boasts excellent paint adhesion characteristics compared to plastics. Unlike polyurethane, it does not require specialized adhesion promoters or flex agents. Appropriately sanded FRP accepts standard automotive base and clear coats flawlessly. However, you must ensure complete removal of molding wax. Use dedicated wax and grease removers prior to applying any primer. Even invisible wax residue causes massive paint fisheyes and peeling.

Conclusion

  • Prioritize Engineering Over Aesthetics: A successful fiberglass front bumper results from rigorous front-end engineering, accurate prototyping, and strict geometric planning.

  • Never Skip the Dry-Fit: Rushing directly to paint without a raw test-fit guarantees poor panel alignment and wastes expensive paint materials.

  • Respect the Hardware: Neglecting OEM hardware in favor of haphazard self-tapping screws leads to fragile mounting and structural failure.

  • Next Steps: Finalize your digital or physical mockups immediately. Before ordering composites, consult with a customization-specific body shop rather than a standard collision center to handle the specialized prep and final paint-matching phase.

FAQ

Q: Why do fiberglass bumpers crack more easily than OEM bumpers?

A: FRP is a highly rigid composite. It disperses kinetic energy poorly compared to OEM injection-molded plastics or polyurethane. While plastics bend to absorb minor bumps, fiberglass maintains its shape until its breaking point, making it prone to shattering upon direct impact.

Q: Can I take a custom fiberglass body kit to a standard collision repair shop?

A: It is highly discouraged. Standard collision shops operate on OEM plug-and-play efficiency. Custom fiberglass requires extensive manual block sanding, gap-matching, and fabrication skills. These specific manual leveling techniques are generally found only in specialized customization and restoration shops.

Q: How do I fix a spider crack in a fiberglass front bumper?

A: Unlike plastic, FRP can be permanently repaired. You must grind away the cracked gelcoat entirely, forming a V-groove into the base material. Apply fresh fiberglass mat and resin into the groove. Once cured, re-level the area with automotive body filler before blocking and repainting.
